Creating Rain with Code
Experience: 2nd year, 1st quarter
Practice: Developing and Using Abstractions, Creating computational artifacts, Testing and refining computational artifacts, and Communicating about computing
Concept: Algorithms and Control
Length: 60+
Overview and Purpose
Coders use a variety of blocks in parallel to simulate rainfall and wind. The purpose of this short project is to apply previously learned understandings in order to simulate weather.
Preparation (20+ minutes)
Suggested preparation
Ensure all devices are plugged in for charging over night.
Customizing this project for your class (10+ minutes): Remix the project example to include your own rain simulation.
(10+ minutes) Read through each part of this lesson plan and decide which sections the coders you work with might be interested in and capable of engaging with in the amount of time you have with them. If using projects with sound, individual headphones are very helpful.
Resources for learning more
- BootUp ScratchJr Tips
- Videos and tips on ScratchJr from our YouTube channel
- BootUp Facilitation Tips
- Videos and tips on facilitating coding classes from our YouTube channel
- Block Descriptions
- A document that describes each of the blocks used in ScratchJr
- Interface Guide
- A reference guide that introduces the ScratchJr interface
- Paint Editor Guide
- A reference guide that introduces features in the paint editor
- Tips and Hints
- Learn even more tips and hints by the creators of the app
- Coding as another language (CAL)
- A set of curriculum units for K-2 using both ScratchJr and KIBO robotics
- ScratchJr in Scratch
- If you’re using ScratchJr in Scratch, this playlist provides helpful tips and resources
Getting Started (5+ minutes)
Suggested sequence
1. Review and demonstration (2+ minutes):
Begin by asking coders to talk with a neighbor for 30 seconds about something they learned last time; assess for general understanding of the practices and concepts from the previous project.

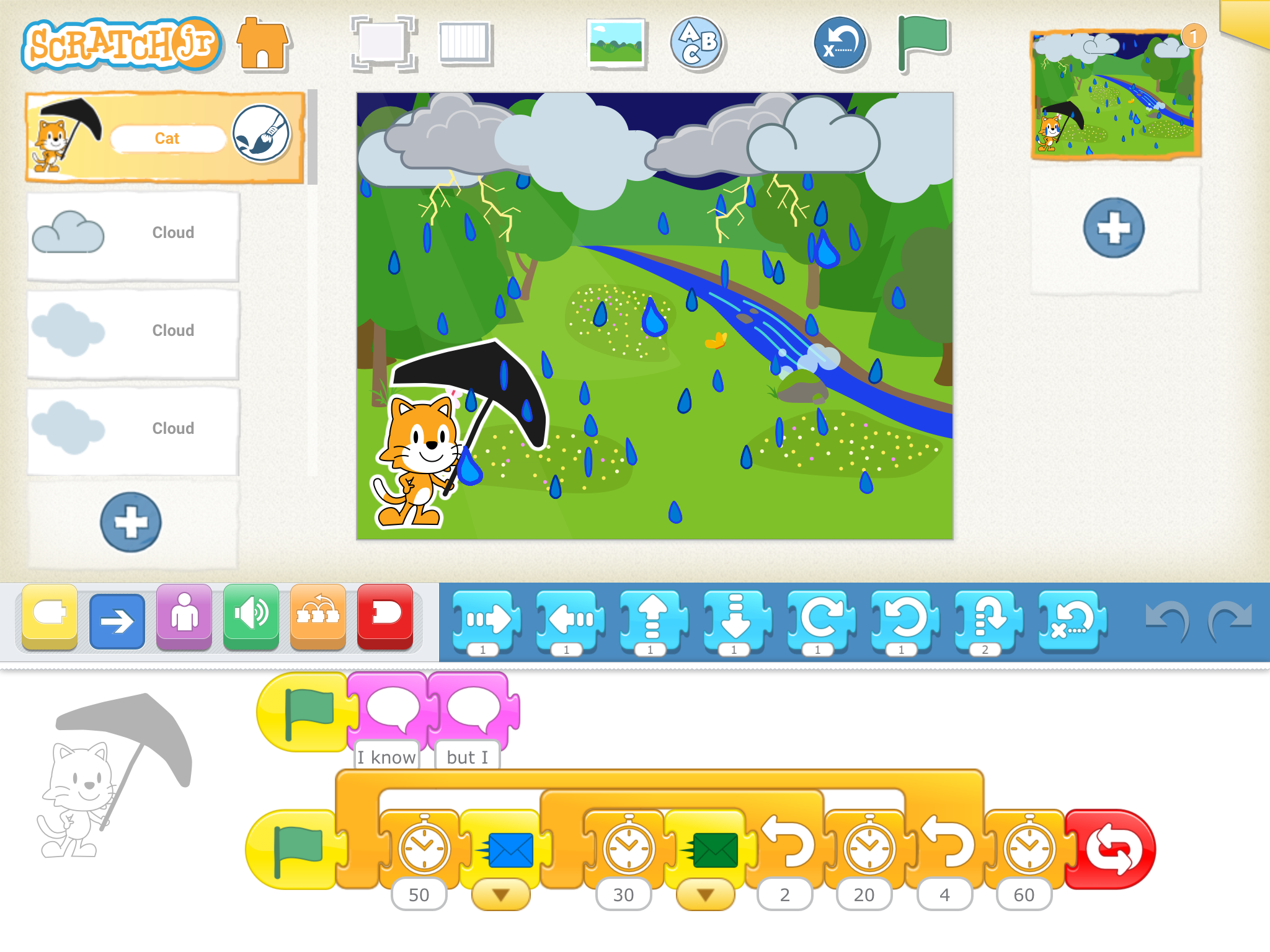

Explain that today we are going to simulate the weather by creating a thunderstorm in ScratchJr. Display and demonstrate the sample project (or your own remixed version).
A note on say blocks: If you are displaying a sample project with say blocks, it might help to read the text out loud using various voices for each sprite as it is displayed. This strategy might help early/pre-readers, as well as young coders who are new to learning English. In addition, when young coders begin working on their own project, you can encourage them to use speech-to-text or emojis in their own say blocks instead of typing out words (or use recorded sound blocks).
Resources, suggestions, and connections
Practices reinforced:
- Communicating about computing
Video: Project Preview (0:46)
Video: Lesson pacing (1:48)
This can include a full class demonstration or guided exploration in small groups or individually. For small group and individual explorations, it might help to set a time limit for exploration before discussing the project.
Example review discussion questions:
- What’s something new you learned last time you coded?
- Is there a new block or word you learned?
- What’s something you want to know more about?
- What’s something you could add or change to your previous project?
- What’s something that was easy/difficult about your previous project?
2. Discuss (3+ minutes):
Have coders talk with each other about how they might create a project like the one demonstrated. If coders are unsure, and the discussion questions aren’t helping, you can model thought processes: “I noticed the sprite moved around, so I think they used a motion block. What motion block(s) might be in the code? What else did you notice?” Another approach might be to wonder out loud by thinking aloud different algorithms and testing them out, next asking coders “what do you wonder about or want to try?”
After the discussion, coders will begin working on their project as a class, in small groups, or at their own pace.
Practices reinforced:
- Communicating about computing
Note: Discussions might include full class or small groups, or individual responses to discussion prompts. These discussions which ask coders to predict how a project might work, or think through how to create a project, are important aspects of learning to code. Not only does this process help coders think logically and creatively, but it does so without giving away the answer.
Example discussion questions:
- What would we need to know to make something like this in ScratchJr?
- What kind of blocks might we use?
- What else could you add or change in a project like this?
- What code from our previous projects might we use in a project like this?
- What kind of sprites might we see in a thunderstorm?
- What kind of code might they have?
Project Work (60+ minutes; 2+ classes)
Suggested sequence
3. Reverse engineering rain (30+ minutes):
Repeat the following for the clouds, rain drops, and wind.
1 minute intro demonstration
Demonstrate one of the following groups of sprites in the example project by pressing the green flag without allowing coders to see the code (i.e., in fullscreen mode):
- Clouds
- Rain drops
- Wind
- The Cat sprite broadcasts messages that simulates wind
- The control blocks attempt to randomize when the wind blows, but all of the rain sprites blow the same way and at different speeds to try and simulate wind
4+ minute reverse engineering and peer-to-peer coaching
Ask coders to see if they can figure out how to use their code blocks to create an algorithm that makes sprites do something similar to what was demonstrated. Facilitate by walking around and asking guiding questions.
1 minute explanation demonstration
If coders figured out how to get their sprites to do something similar, have them document in their journal, share with a partner, or have a volunteer show the class their code and thought processes that led to the code. Otherwise, reveal the code and walk through why there are so many sprites (e.g., thunderstorms have lots of clouds and rain), why their code is slightly different (e.g., so it looks random), and why some sprites have multiple trigger blocks (e.g., to simulate wind).
4+ minute application and exploration
Encourage coders to try something similar, and leave your code up on display while they work. Facilitate by walking around and asking questions about how coders might change their code so it’s not the same as yours.
Resources, suggestions, and connections
Standards reinforced:
- 1A-AP-08 Model daily processes by creating and following algorithms (sets of step-by-step instructions) to complete tasks
- 1A-AP-10 Develop programs with sequences and simple loops, to express ideas or address a problem
- 1A-AP-11 Decompose (break down) the steps needed to solve a problem into a precise sequence of instructions.
- 1A-AP-14 Debug (identify and fix) errors in an algorithm or program that includes sequences and simple loops.
Practices reinforced:
- Communicating about computing
- Testing and refining computational artifacts
- Creating computational artifacts
- Developing and using abstractions
Concepts reinforced
- Algorithms
- Control
Video: Suggestions for reverse engineering (4:25)
Alternative suggestion: If reverse engineering is too difficult for the coders you work with, you could display the source code and have coders predict what will happen.
Suggested guiding questions:
- What kind of blocks do you think you might need to do something like that?
- Do you see a pattern where we might use a repeat?
- What trigger blocks do you think I used for each sprite?
- Did I use one trigger block or more than one?
- What makes you think that?
- How did I make it look like there’s wind blowing the rain?
Potential discussion: There is not always one way to recreate something with code, so coders may come up with alternative solutions to your own code. When this occurs, it can open up an interesting discussion or journal reflection on the affordances and constraints of such code.
Suggested application and exploration questions:
- What other code blocks could you use?
- What other sprites might use similar code?
4. Create even more weather simulations (30+ minutes):
Ask coders to add, modify, or create more sprites along with code that simulates their motion to create weather. Facilitate by walking around and asking questions and encouraging coders to try out new block combinations in parallel with each other.
Standards reinforced:
- 1A-AP-08 Model daily processes by creating and following algorithms (sets of step-by-step instructions) to complete tasks
- 1A-AP-10 Develop programs with sequences and simple loops, to express ideas or address a problem
Practices reinforced:
- Testing and refining computational artifacts
- Creating computational artifacts
Concepts reinforced:
- Algorithms
- Control
Suggested questions:
- What other weather might you simulate (e.g., snow falling, blizzard, sandstorm, windy day, etc.)?
- What kind of code would you use in that simulation?
- How many trigger blocks might we need to get code to run in parallel?
- Will we only need motion blocks to simulate a sprite moving or will we need more?
- How might we use motion blocks and looks blocks to simulate a sprite moving?
- For example, what about if a sprite is moving closer or further away?
- How might we use motion blocks and looks blocks to simulate a sprite moving?
Assessment
Standards reinforced:
- 1A-AP-15 Using correct terminology, describe steps taken and choices made during the iterative process of program development
Practices reinforced:
- Communicating about computing
Although opportunities for assessment in three different forms are embedded throughout each lesson, this page provides resources for assessing both processes and products. If you would like some example questions for assessing this project, see below:
Summative (Assessment of Learning)
The debugging exercises, commenting on code, and projects themselves can all be forms of summative assessment if a criteria is developed for each project or there are “correct” ways of solving, describing, or creating.
For example, ask the following after a project:
- Can coders debug the debugging exercises?
- Did coders create a project similar to the project preview?
- Note: The project preview and sample projects are not representative of what all grade levels should seek to emulate. They are meant to generate ideas, but expectations should be scaled to match the experience levels of the coders you are working with.
- Did coders use a variety of block types in their algorithms and can they explain how they work together for specific purposes?
- Can coders explain how their algorithms work in parallel to simulate weather?
- Did coders create a weather simulator with at least ## different sprites with different algorithms?
- Choose a number appropriate for the coders you work with and the amount of time available.
Formative (Assessment for Learning)
The 1-on-1 facilitating during each project is a form of formative assessment because the primary role of the facilitator is to ask questions to guide understanding; storyboarding can be another form of formative assessment.
For example, ask the following while coders are working on a project:
- What are three different ways you could change that sprite’s algorithm?
- What happens if we change the order of these blocks?
- What could you add or change to this code and what do you think would happen?
- How might you use code like this in everyday life?
- See the suggested questions throughout the lesson and the assessment examples for more questions.
Ipsative (Assessment as Learning)
The reflection and sharing section at the end of each lesson can be a form of ipsative assessment when coders are encouraged to reflect on both current and prior understandings of concepts and practices.
For example, ask the following after a project:
- How is this project similar or different from previous projects?
- What new code or tools were you able to add to this project that you haven’t used before?
- How can you use what you learned today in future projects?
- What questions do you have about coding that you could explore next time?
- See the reflection questions at the end for more suggestions.
